- Wire
Wire

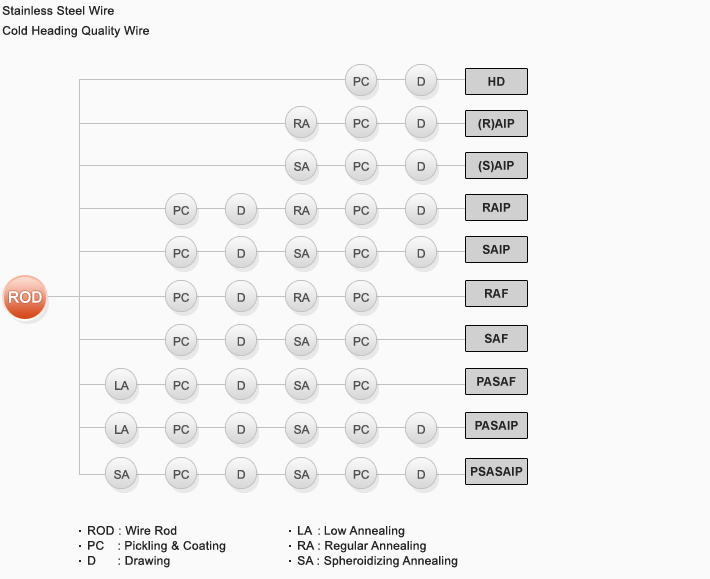

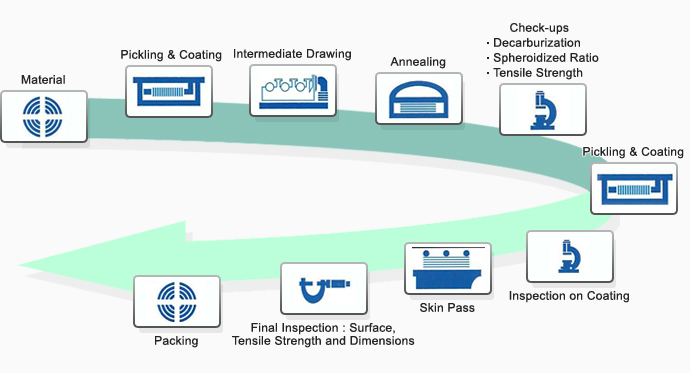

- CHQ (Cold Heading Quality) Wire
- Application
- - Automotive Components
- - Construction Bolt
- - Machinery Components
- - Electronic Parts
- - Engine Parts & Bolt
- - Piston Pin
- - Spark Plug
- - Ball Housing
- - Brake System Parts
- - Bolt & Nut
- Hard Drawn Steel Wire
-
Tensile Strength(N/mm2) |
Nominal Diameter (mm) |
SW - A |
SW - B |
SW - C |
0.50 |
1620 ~ 1910 |
1910 ~ 2210 |
2210 ~ 2500 |
0.55 |
1570 ~ 1860 |
1860 ~ 2160 |
2160 ~ 2450 |
0.60 |
1570 ~ 1810 |
1810 ~ 2110 |
2110 ~ 2400 |
0.65 |
1570 ~ 1810 |
1810 ~ 2110 |
2110 ~ 2400 |
0.70 |
1520 ~ 1770 |
1770 ~2060 |
2060 ~ 2350 |
0.80 |
1520 ~ 1770 |
1770 ~2010 |
2010 ~ 2350 |
0.90 |
1520 ~ 1770 |
1770 ~ 2010 |
2010 ~ 2260 |
1.00 |
1470 ~ 1720 |
1720 ~ 1960 |
1960 ~ 2210 |
1.20 |
1420 ~ 1670 |
1670 ~ 1910 |
1910 ~ 2160 |
1.40 |
1370 ~ 1620 |
1620 ~ 1860 |
1860 ~ 2110 |
1.60 |
1320 ~ 1570 |
1569 ~ 1815 |
1815 ~ 2060 |
1.80 |
1270 ~ 1520 |
1520 ~ 1770 |
1770 ~ 2010 |
2.00 |
1270 ~ 1470 |
1470 ~ 1720 |
1720 ~ 1960 |
2.30 |
1230 ~ 1420 |
1420 ~ 1670 |
1670 ~ 1910 |
2.60 |
1230 ~ 1420 |
1420 ~ 1670 |
1670 ~ 1910 |
2.90 |
1180 ~ 1370 |
1370 ~ 1620 |
1620 ~ 1860 |
3.20 |
1180 ~ 1370 |
1370 ~ 1570 |
1570 ~ 1810 |
3.50 |
1180 ~ 1370 |
1370 ~ 1570 |
1570 ~ 1770 |
4.00 |
1180 ~ 1370 |
1370 ~ 1570 |
1570 ~ 1770 |
4.50 |
1130 ~ 1320 |
1320 ~ 1520 |
1520 ~ 1720 |
5.00 |
1130 ~ 1320 |
1320 ~ 1520 |
1520 ~ 1720 |
5.50 |
1080 ~ 1270 |
1270 ~ 1470 |
1470 ~ 1670 |
6.00 |
1030 ~ 1230 |
1230 ~ 1420 |
1420 ~ 1620 |
6.50 |
1030 ~ 1230 |
1230 ~ 1420 |
1420 ~ 1620 |
7.00 |
980 ~ 1180 |
1180 ~ 1370 |
1370 ~ 1570 |
8.00 |
980 ~ 1180 |
1180 ~ 1370 |
1370 ~ 1570 |
9.00 |
930 ~ 1130 |
1130 ~ 1320 |
1320 ~ 1520 |
10.00 |
930 ~ 1130 |
1130 ~ 1320 |
1320 ~ 1520 |
11.00 |
- |
1080 ~ 1270 |
1270 ~ 1470 |
* Regarding an intermediate diameter, the value of the larger diameter than this shall be used. |
* Sizes of under 0.50mm are omitted. |
- Class, Symbol and Applicable Size Range
-
Class |
Symbol |
Applied Wire Diameter |
Remark |
Hard Drawn Steel Wire Class A |
SW - A |
0.08mm or over up to and incl. 10.0mm |
- |
Hard Drawn Steel Wire Class B |
SW - B |
0.08mm or over up to and incl. 13.0mm |
Mainly for spring receiving, principally static load |
Hard Drawn Steel Wire Class C |
SW - C |
- Piano Wire & Silver Wire
-
Tensile Strength of Piano, Silver Wire(N/mm2) |
Nominal Diameter (mm) |
SPW - 1 |
SPW - 2 |
SILVER - A |
SILVER - B |
0.50 |
2300 ~ 2550 |
2550 ~ 2790 |
|
|
0.55 |
2600 ~ 2500 |
2500 ~ 2750 |
2260 ~ 2450 |
|
0.60 |
2100 ~ 2450 |
2450 ~ 2700 |
2260 ~ 2450 |
|
0.65 |
2100 ~ 2450 |
2450 ~ 2700 |
2210 ~ 2400 |
|
0.70 |
2160 ~ 2400 |
2400 ~ 2650 |
2210 ~ 2400 |
|
0.80 |
2110 ~ 2350 |
2350 ~ 2600 |
2160 ~ 2350 |
2310 ~ 2500 |
0.90 |
2110 ~ 2300 |
2300 ~ 2500 |
2110 ~ 2300 |
2260 ~ 2450 |
1.00 |
2060 ~ 2260 |
2260 ~ 2450 |
2060 ~ 2260 |
2210 ~ 2400 |
1.20 |
2010 ~ 2210 |
2210 ~ 2400 |
2010 ~ 2210 |
2160 ~ 2300 |
1.40 |
1960 ~ 2160 |
2160 ~ 2350 |
1960 ~ 2160 |
2110 ~ 2300 |
1.60 |
1910 ~ 2110 |
2110 ~ 2300 |
1910 ~ 2110 |
2060 ~ 2260 |
1.80 |
1860 ~ 2060 |
2060 ~ 2260 |
1860 ~ 2060 |
2010 ~ 2200 |
2.00 |
1810 ~ 2010 |
2010 ~ 2210 |
1810 ~ 1960 |
1960 ~ 2110 |
2.30 |
1770 ~ 1960 |
1960 ~ 2160 |
1770 ~ 1960 |
1910 ~ 2110 |
2.60 |
1770 ~ 1960 |
1960 ~ 2160 |
1770 ~ 1860 |
1910 ~ 2060 |
2.90 |
1720 ~ 1910 |
1910 ~ 2110 |
1720 ~ 1860 |
1810 ~ 1960 |
3.20 |
1670 ~ 1860 |
1860 ~ 2060 |
1670 ~ 1860 |
1810 ~ 1960 |
3.50 |
1670 ~ 1810 |
1810 ~ 1960 |
1670 ~ 1810 |
1770 ~ 1910 |
4.00 |
1670 ~ 1810 |
1810 ~ 1960 |
1670 ~ 1810 |
1770 ~ 1910 |
4.50 |
1620 ~ 1770 |
1770 ~ 1910 |
1620 ~ 1770 |
1720 ~ 1860 |
5.00 |
1620 ~ 1770 |
1770 ~ 1910 |
1620 ~ 1770 |
1720 ~ 1860 |
5.50 |
1570 ~ 1710 |
1710 ~ 1860 |
1570 ~ 1720 |
1670 ~ 1810 |
6.00 |
1520 ~ 1670 |
1670 ~ 1810 |
1520 ~ 1670 |
1620 ~ 1770 |
6.50 |
1520 ~ 1670 |
1670 ~ 1810 |
1470 ~ 1620 |
1620 ~ 1770 |
7.00 |
1470 ~ 1620 |
1620 ~ 1770 |
1420 ~ 1570 |
1570 ~ 1720 |
8.00 |
1470 ~ 1620 |
|
1370 ~ 1520 |
1470 ~ 1620 |
9.00 |
1420 ~ 1570 |
|
1320 ~ 1470 |
|
10.00 |
1420 ~ 1570 |
|
1280 ~ 1420 |
|
* Regarding an intermediate diameter, the value of the larger diameter than this shall be used. * Sizes of under 0.50mm are omitted. |
- Classes, Symbols and Applied Wire Diameters
-
Class |
Symbol |
Applied Wir Diameter |
Application |
Piano Wire, Class A |
SPW - 1 |
0.08mm or over up to and incl. 10.0mm |
For Spring receiving principally dynamic load |
Piano Wire, Class B |
SPW - 2 |
0.08mm or over up to and incl. 7.0mm |
- Low P.C. Wire & Strand
-
Standard |
Symbol |
Designation |
Nominal |
Tolerance of Dia. |
Difference between diameters of core wire and side wire (mm) |
Breaking Load |
Yield Load |
Diameter |
(mm) |
KN (Min) |
Kgf (Min) |
KN (Min) |
Kgf (Min) |
(mm) |
|
KS D 7002 (JIS G3536) |
SWPC 2 (SWPR 2) |
2.9mm 2 Wire Strand |
2.9 |
¡¾0.3 |
- |
25.5 |
2.600 |
22.6 |
2.304 |
SWPD 3 (SWPD 3) |
2.9mm 3 Wire Strand |
2.9 |
|
- |
38.2 |
3.895 |
33.8 |
3.446 |
SWPC 7A (SWPR 7A) |
7 Wire Strand 6.2mm |
6.2 |
+ 0.4/ -0.2 |
Min. 0.03 |
40.2 |
4.100 |
33.8 |
3.446 |
7 Wire Strand 7.9mm |
7.9 |
+ 0.4/ -0.2 |
Min. 0.04 |
64.7 |
6.597 |
54.9 |
5.598 |
7 Wire Strand 9.3mm |
9.3 |
+ 0.4/ -0.2 |
Min. 0.05 |
88.8 |
9.055 |
75.5 |
7.698 |
7 Wire Strand 10.8mm |
10.8 |
+ 0.4/ -0.2 |
Min. 0.07 |
120 |
12.236 |
102 |
10.401 |
7 Wire Strand 12.4mm |
12.4 |
+ 0.4/ -0.2 |
Min. 0.08 |
160 |
16.315 |
136 |
13.868 |
7 Wire Strand 15.2mm |
15.2 |
+ 0.4/ -0.2 |
Min. 0.08 |
240 |
24.473 |
204 |
20.802 |
SWPC 7B (SWPR 7B) |
7 Wire Strand 9.5mm |
9.5 |
+ 0.4/ -0.2 |
Min. 0.05 |
102 |
10.401 |
86.8 |
8.851 |
7 Wire Strand 11.1mm |
11.1 |
+ 0.4/ -0.2 |
Min. 0.07 |
138 |
14.072 |
118 |
12.032 |
7 Wire Strand 12.7mm |
12.7 |
+ 0.4/ -0.2 |
Min. 0.08 |
183 |
18.660 |
156 |
15.907 |
7 Wire Strand 15.2mm |
15.2 |
+ 0.4/ -0.2 |
Min. 0.08 |
261 |
26.614 |
222 |
22.637 |
Standard |
Symbol |
Designation |
Elongation |
Relaxation Value 1000h (B.L * 70%) Max. |
Nominal cross- Sectional Area |
Unit mass |
Pitch |
Min. (%) |
(Kg/Km) |
No. |
N |
L |
(mm2) |
(mm) |
KS D 7002 (JIS G3536) |
SWPC 2 (SWPR 2) |
2.9mm 2 Wire Strand |
3.5 |
8.0 |
2.5 |
13.21 |
104 |
24 ~ 32 |
69.6 ~ 92.8 |
SWPC 3 (SWPR 3) |
2.9mm 3 Wire Strand |
3.5 |
8.0 |
2.5 |
19.82 |
156 |
24 ~ 32 |
69.6 ~ 92.8 |
SWPC 7A (SWPR 7A) |
7 Wire Strand 6.2mm |
3.5 |
8.0 |
2.5 |
23.23 |
182 |
12 ~ 18 |
74.4 ~ 111.6 |
7 Wire Strand 7.9mm |
3.5 |
8.0 |
2.5 |
37.42 |
293 |
12 ~ 18 |
94.8 ~ 142.2 |
7 Wire Strand 9.3mm |
3.5 |
8.0 |
2.5 |
51.61 |
405 |
12 ~ 18 |
111.6 ~ 167.4 |
7 Wire Strand 10.8mm |
3.5 |
8.0 |
2.5 |
69.68 |
546 |
12 ~ 18 |
129.6 ~ 223.2 |
7 Wire Strand 12.4mm |
3.5 |
8.0 |
2.5 |
92.9 |
729 |
12 ~ 18 |
148.8 ~ 198.4 |
7 Wire Strand 15.2mm |
3.5 |
8.0 |
2.5 |
138.7 |
1101 |
12 ~ 18 |
182.4 ~ 273.6 |
SWPR 7B (SWPR 7B) |
7 Wire Strand 9.5mm |
3.5 |
8.0 |
2.5 |
54.84 |
432 |
12 ~ 18 |
114 ~ 171 |
7 Wire Strand 11.1mm |
3.5 |
8.0 |
2.5 |
74.19 |
580 |
12 ~ 18 |
133.2 ~ 199.8 |
7 Wire Strand 12.7mm |
3.5 |
8.0 |
2.5 |
98.71 |
774 |
12 ~ 18 |
152.4 ~ 228.6 |
7 Wire Strand 15.2mm |
3.5 |
8.0 |
2.5 |
138.8 |
1101 |
12 ~ 18 |
182.4 ~ 273.6 |

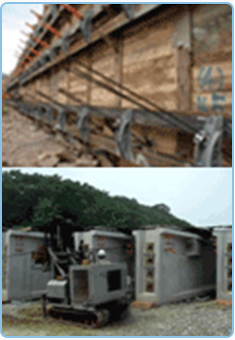

- Unbonded P.C. Stand
- Low P.C Strand and Galvanized P.C Strand are coated with High Density Polyethylene(H.D.P.E) and Grease is filled inside, which provides the superb anti-corrosion
-
Nominal Diameter (mm) |
Nominal Diameter of Unbonded P.C Strand(mm) |
H.D.P.F Thickness(mm) |
Grease Coating Weight(g/m) |
Unit Weight (Kg/Km) |
12.7 |
15.7 ~ 16.5 |
1.0 ~ 1.25 |
Min.35 |
865 |
15.2 |
17.8 ~ 18.9 |
1.0 ~ 1.25 |
Min.45 |
1,210 |
-
Standard |
Grade |
Nominal |
Permissible Variations in Diameter |
Difference between diameters of core wire and side wire |
Breaking Strength |
Load at 1% Extension |
Diameter |
|
(Min) |
N Relaxation |
K Relaxation |
(mm) |
(mm) |
(mm) |
KN |
Kgf |
KN |
Kgf |
KN |
Kgf |
ASTM A416 |
Grade 250 |
6.35 |
¡¾0.40 |
0.0254 |
0.0254 |
40.0 |
4.078 |
34.0 |
6,467 |
36.0 |
3,670 |
7.94 |
¡¾0.40 |
0.0381 |
0.0381 |
64.5 |
6.577 |
54.7 |
5,577 |
58.1 |
5,924 |
9.53 |
¡¾0.40 |
0.0508 |
0.0508 |
89.0 |
9.075 |
75.6 |
7,709 |
80.1 |
8,167 |
11.11 |
¡¾0.40 |
0.0635 |
0.0635 |
120.1 |
12.246 |
102.3 |
10,431 |
108.1 |
18,023 |
12.7 |
¡¾0.40 |
0.0672 |
0.0672 |
160.1 |
16.335 |
136.2 |
13,888 |
144.1 |
14,694 |
15.24 |
¡¾0.40 |
1.1016 |
1.1016 |
240.2 |
24.493 |
204.2 |
20,822 |
216.2 |
22,046 |
Grade 270 |
9.53 |
+0.65, -0.15 |
0.0508 |
0.0508 |
102.3 |
10.431 |
87.0 |
8,871 |
92.1 |
9,391 |
11.11 |
+0.65, -0.15 |
0.0635 |
0.0635 |
137.9 |
14.061 |
117.2 |
11,951 |
124.1 |
12,654 |
12.7 |
+0.65, -0.15 |
0.0762 |
0.0762 |
183.7 |
18.732 |
156.1 |
15,917 |
165.3 |
16,855 |
15.24 |
+0.65, -0.15 |
0.1016 |
0.1016 |
260.7 |
26.584 |
221.5 |
22,586 |
234.6 |
23,922 |
Standard |
Grade |
Elongation(%) Min |
Relaxation Value (1000h)% Max |
Steel Area (mm2) |
Weight of Strand (kg/Km) |
Pitch(No.) |
70% |
80% |
ASTM A416 |
Grade 250 |
3.5 |
2.5 |
3.5 |
23.22 |
182 |
12 ~ 16 |
3.5 |
2.5 |
3.5 |
37.42 |
294 |
12 ~ 16 |
3.5 |
2.5 |
3.5 |
51.61 |
405 |
12 ~ 16 |
3.5 |
2.5 |
3.5 |
69.68 |
548 |
12 ~ 16 |
3.5 |
2.5 |
3.5 |
82.90 |
730 |
12 ~ 16 |
3.5 |
2.5 |
3.5 |
139.35 |
1094 |
12 ~ 16 |
Grade 270 |
3.5 |
2.5 |
3.5 |
54.45 |
432 |
12 ~ 16 |
3.5 |
2.5 |
3.5 |
74.19 |
582 |
12 ~ 16 |
3.5 |
2.5 |
3.5 |
98.71 |
775 |
12 ~ 16 |
3.5 |
2.5 |
3.5 |
140.00 |
1102 |
12 ~ 16 |

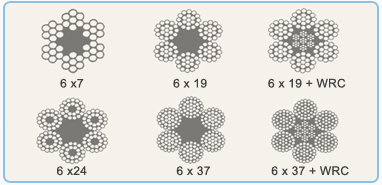

- Wire Rope
- 6 x 7
-
Rope Dia. |
Minimum Breaking Load (Metric Tons) |
Approx. Weight (kg/100m) |
mm |
inch |
Grade G (1,470N/mm2) |
Grade A (1,620N/mm2) |
Grade B (1,770N/mm2) |
IPS |
EIPS |
(7.94) |
5/16 |
|
|
|
3.72 |
4.09 |
22.32 |
8 |
|
3.45 |
3.88 |
4.24 |
|
|
22.32 |
(9.53) |
3/8 |
|
|
|
5.31 |
5.85 |
31.25 |
10 |
|
5.39 |
6.06 |
6.63 |
|
|
37.10 |
(11.11) |
7/16 |
|
|
|
7.19 |
7.91 |
43.16 |
(12.7) |
1/2 |
|
|
|
9.34 |
10.3 |
56.55 |
14 |
|
10.6 |
11.9 |
13.0 |
|
|
71.43 |
(14.29) |
9/16 |
|
|
|
11.8 |
13.0 |
71.43 |
(15.88) |
5/8 |
|
|
|
14.4 |
16.0 |
87.80 |
16 |
|
13.8 |
15.5 |
17.0 |
|
|
87.80 |
18 |
|
17.5 |
19.6 |
21.5 |
|
|
120.0 |
(19.05) |
3/4 |
|
|
|
20.6 |
22.6 |
125.0 |
20 |
|
21.5 |
24.2 |
26.5 |
  |
|
148.0 |
(22.23) |
7/8 |
|
|
|
27.8 |
30.7 |
171.1 |
22.4 |
|
27.0 |
30.4 |
33.2 |
  |
|
173.8 |
25 |
|
33.7 |
37.9 |
41.4 |
  |
|
223.2 |
(25.4) |
1 |
|
|
|
36.0 |
39.7 |
223.2 |
28 |
|
42.2 |
47.5 |
51.9 |
|
|
282.8 |
(28.58) |
1 1/8 |
|
|
|
45.2 |
49.8 |
282.8 |
30 |
|
48.5 |
54.6 |
59.6 |
|
|
334.0 |
31.5 |
|
53.4 |
60.2 |
65.8 |
|
|
342.8 |
(31.75) |
1 1/4 |
|
|
|
55.4 |
60.9 |
442.6 |
33.5 |
|
60.4 |
68.0 |
74.3 |
|
|
416.0 |
(34.39) |
1 3/8 |
|
|
|
66.3 |
72.9 |
422.6 |
35.5 |
|
67.8 |
76.4 |
83.4 |
|
|
467.0 |
37.5 |
|
75.7 |
85.3 |
93.1 |
|
|
522.0 |
(38.1) |
1 1/2 |
|
|
|
78.2 |
86.0 |
503.0 |
40 |
|
86.2 |
97.1 |
105.9 |
|
|
593.0 |
42.5 |
|
97.3 |
109.6 |
119.6 |
|
|
670.0 |
- 6 x 19
-
Rope Dia. |
Minimum Breaking Load (Metric Tons) |
Approx. Weight (kg/100m) |
FC |
IWRC |
mm |
Grade G (1,470N/mm2) |
Grade A (1,620N/mm2) |
Grade B (1,770N/mm2) |
Grade G (1,470N/mm2) |
Grade A (1,620N/mm2) |
Grade B (1,770N/mm2) |
FC |
IWRC |
8 |
3.28 |
3.53 |
3.76 |
3.52 |
3.87 |
4.22 |
24.41 |
26.79 |
10 |
5.12 |
5.51 |
5.88 |
5.49 |
6.04 |
6.59 |
36.40 |
40.40 |
11.2 |
6.43 |
6.91 |
7.38 |
6.89 |
7.58 |
8.27 |
48.39 |
52.94 |
12 |
7.38 |
7.93 |
8.47 |
7.91 |
8.70 |
9.49 |
52.40 |
58.20 |
12.7 |
8.13 |
8.74 |
9.34 |
8.72 |
9.59 |
10.5 |
62.50 |
68.46 |
14 |
10.0 |
10.8 |
11.5 |
10.8 |
11.8 |
12.9 |
78.87 |
87.80 |
16 |
13.1 |
14.1 |
15.1 |
14.1 |
15.5 |
16.9 |
98.22 |
107.2 |
18 |
16.6 |
17.8 |
19.1 |
17.8 |
19.6 |
21.4 |
118.0 |
131.0 |
20 |
20.5 |
22.0 |
23.5 |
22.0 |
24.2 |
26.4 |
146.0 |
162.0 |
22.4 |
25.7 |
27.6 |
29.5 |
27.6 |
30.3 |
33.1 |
194.9 |
214.6 |
24 |
29.5 |
31.7 |
33.9 |
31.6 |
34.8 |
38.0 |
210.0 |
233.0 |
25 |
32.0 |
34.4 |
36.8 |
34.3 |
37.8 |
41.2 |
250.0 |
275.3 |
25.4 |
33.0 |
35.5 |
37.9 |
35.4 |
39.0 |
42.5 |
250.0 |
275.3 |
26 |
34.6 |
37.2 |
39.8 |
37.1 |
40.8 |
44.6 |
262.0 |
288.5 |
28 |
40.2 |
43.2 |
46.1 |
43.1 |
47.4 |
51.7 |
317.0 |
348.2 |
30 |
46.1 |
49.6 |
52.9 |
49.4 |
54.4 |
59.3 |
328.0 |
364.0 |
32 |
52.5 |
56.4 |
60.2 |
56.2 |
61.9 |
67.5 |
391.4 |
430.1 |
34 |
59.2 |
63.7 |
68.0 |
63.5 |
69.8 |
76.2 |
421.0 |
467.0 |
35 |
62.8 |
67.5 |
72.1 |
67.3 |
74.0 |
80.7 |
473.2 |
520.9 |
36 |
66.4 |
71.4 |
76.2 |
71.2 |
78.3 |
85.4 |
491.8 |
543.0 |
38 |
74.0 |
79.5 |
84.9 |
79.3 |
87.2 |
95.2 |
562.5 |
619.1 |
40 |
82.0 |
88.1 |
94.1 |
87.9 |
96.7 |
105 |
582.0 |
646.0 |
- 6 x 24
-
Rope Dia. |
Minimum Breaking Load (Metric Tons) |
Approx. Weight (kg/100m) |
mm |
Grade G (1,470N/mm2) |
Grade A (1,620N/mm2) |
Grade B (1,770N/mm2) |
8 |
2.98 |
3.21 |
3.50 |
21.20 |
9 |
3.77 |
4.06 |
4.43 |
26.90 |
10 |
4.65 |
5.02 |
5.47 |
33.20 |
11.2 |
5.83 |
6.30 |
6.87 |
42.28 |
12 |
6.70 |
7.23 |
7.88 |
47.80 |
12.5 |
7.29 |
7.85 |
8.55 |
52.09 |
14 |
9.12 |
9.48 |
10.7 |
65.10 |
16 |
11.9 |
12.8 |
14.0 |
80.36 |
18 |
15.1 |
16.3 |
17.7 |
108.0 |
20 |
18.6 |
20.1 |
21.9 |
133.0 |
22.4 |
23.3 |
25.2 |
27.5 |
167.0 |
24 |
26.8 |
28.9 |
31.5 |
191.0 |
25 |
29.1 |
31.4 |
34.2 |
205.4 |
28 |
36.5 |
39.3 |
42.9 |
260.4 |
30 |
41.9 |
45.2 |
49.3 |
299.0 |
31.5 |
46.3 |
49.9 |
54.4 |
316.4 |
33.5 |
52.4 |
56.4 |
61.5 |
373.0 |
35.5 |
58.8 |
63.3 |
69.1 |
399.6 |
37.5 |
65.7 |
70.7 |
77.1 |
467.0 |
40 |
74.4 |
80.3 |
87.6 |
532.0 |
42.5 |
84.3 |
90.8 |
98.9 |
600.0 |
45 |
94.5 |
102 |
111 |
672.0 |
47.5 |
105 |
113 |
124 |
749.0 |
50 |
116 |
125 |
137 |
821.5 |
52 |
126 |
136 |
148 |
898.0 |
54 |
136 |
146 |
160 |
968.0 |
56 |
146 |
157 |
172 |
1,040 |
58 |
156 |
169 |
184 |
1,116 |
60 |
167 |
181 |
197 |
1,200 |
63 |
185 |
199 |
217 |
1,320 |
63.5 |
188 |
202 |
221 |
1,340 |
74 |
255 |
275 |
300 |
1,819 |
76.2 |
270 |
291 |
318 |
1,929 |
- 6 x 37
-
Rope Dia. |
Minimum Breaking Load (Metric Tons) |
Approx. Weight (kg/100m) |
FC |
IWRC |
mm |
Grade A (1,620N/mm2) |
Grade B (1,770N/mm2) |
Grade C (1,910N/mm2) |
Grade A (1,620N/mm2) |
Grade B (1,770N/mm2) |
Grade C (1,910N/mm2) |
FC |
IWRC |
8 |
3.47 |
3.70 |
4.01 |
3.71 |
4.05 |
4.39 |
24.41 |
26.79 |
9 |
4.39 |
4.68 |
5.07 |
4.69 |
5.12 |
5.55 |
29.10 |
32.30 |
10 |
5.42 |
5.78 |
6.26 |
5.79 |
6.32 |
6.85 |
35.90 |
39.80 |
11.2 |
6.80 |
7.25 |
7.86 |
7.27 |
7.93 |
8.59 |
48.39 |
52.94 |
12 |
7.81 |
8.33 |
9.02 |
8.34 |
9.10 |
9.86 |
51.70 |
57.40 |
12.5 |
8.46 |
9.02 |
9.79 |
9.05 |
9.87 |
10.7 |
62.50 |
68.46 |
14 |
10.6 |
11.3 |
12.3 |
11.4 |
12.4 |
13.4 |
78.87 |
87.80 |
16 |
13.9 |
14.8 |
16.0 |
14.8 |
16.2 |
17.5 |
98.22 |
107.2 |
18 |
17.6 |
18.7 |
20.3 |
18.8 |
20.5 |
22.2 |
116.0 |
129.0 |
20 |
21.7 |
23.1 |
25.1 |
23.2 |
25.3 |
27.4 |
144.0 |
160.0 |
22.4 |
27.2 |
29.0 |
31.4 |
29.1 |
31.7 |
34.4 |
192.0 |
211.3 |
24 |
31.2 |
33.3 |
36.1 |
33.4 |
36.4 |
39.4 |
207.0 |
230.0 |
25 |
33.9 |
36.1 |
39.2 |
36.2 |
39.5 |
42.8 |
250.0 |
275.3 |
28 |
42.5 |
45.3 |
49.1 |
45.4 |
49.5 |
53.7 |
317.0 |
348.2 |
30 |
48.8 |
52.0 |
56.4 |
52.1 |
56.9 |
61.6 |
323.0 |
359.0 |
31.5 |
53.7 |
57.3 |
62.2 |
57.5 |
62.7 |
67.9 |
357.0 |
396.0 |
33.5 |
60.8 |
64.9 |
70.3 |
65.0 |
71.0 |
76.8 |
403.0 |
447.0 |
35.5 |
68.2 |
72.8 |
78.9 |
73.0 |
79.6 |
86.3 |
481.0 |
530.5 |
37.5 |
76.2 |
81.2 |
88.0 |
81.5 |
88.9 |
96.3 |
544.1 |
599.3 |
40 |
86.8 |
92.5 |
100 |
92.7 |
101 |
110 |
575.0 |
638.0 |
42.5 |
97.8 |
104 |
113 |
104 |
114 |
124 |
676.6 |
743.6 |
45 |
110 |
117 |
127 |
118 |
128 |
139 |
785.5 |
864.8 |
47.5 |
122 |
131 |
142 |
130 |
143 |
155 |
811.0 |
900.0 |
50 |
136 |
145 |
157 |
145 |
158 |
171 |
1,000 |
1,100 |
53 |
152 |
162 |
176 |
163 |
178 |
192 |
1,106 |
1,236 |
56 |
170 |
181 |
196 |
182 |
198 |
215 |
1,140 |
1,270 |
60 |
195 |
208 |
226 |
209 |
228 |
246 |
1,290 |
1,430 |
63 |
215 |
230 |
249 |
230 |
251 |
272 |
1,430 |
1,590 |
74 |
297 |
317 |
343 |
317 |
346 |
375 |
1,968 |
2,172 |
76.2 |
315 |
336 |
364 |
336 |
367 |
398 |
2,247 |
2,470 |
